CLFD-0370 Freeze Dryer
CLS CLFD-0370 is a vacuum controlled freeze dryer that offers high efficiency and reliability. Used in the food, pharmaceutical and biotechnology sectors, this device evaporates the water content of the products at low temperature and low pressure in a vacuum environment and dries them. In this way, heat-sensitive substances are protected, and their nutritional value and effectiveness are maximized. CLS CLFD-0370 is an ideal solution for professional drying processes with its advanced control systems and user friendly interface.
Separate drying chamber reduces the possibility of damage caused by improper use of the drying chamber |
316L stainless steel stackable sample racks are suitable for freeze dryer solvents and a variety of corrosive solvents. |
5.4" LCD Touch Screen |
Cold trap cavity and condensing coil are made of 316L stainless stell. Due to the large opening and channel design, gas can be quickly captured yhrough yhe condensing coil. |
Danfoss compressor, copper plate heat exchanger offers the largest area to increase heat dissipation. |
Thermal electomagnetic overcurrent and short circuit protection make the equipment work more safely and stably. |
| GENERAL DATA | |
| Device | CLFD-0370 |
| Device type | Freeze Dryer |
| Warranty | 2 Year |
| Identification | CE |
| Quality management | DIN EN ISO 9001:2008 |
| Vacuum Pump Data | |
| Vacuum Pump | 8m³/h pumping capacity 5*10-3 mbar extreme vacuum, various types of optional pumps |
| Pump Connection | Single forming stainless steel flexible pipe DN16 ISO-KF L-1.2m |
| General technical data | |
| Ice Condenser Capacity | 3 kg |
| Ice Condenser Temperature | -70OC |
| Cold Trap Capacity | 5 L |

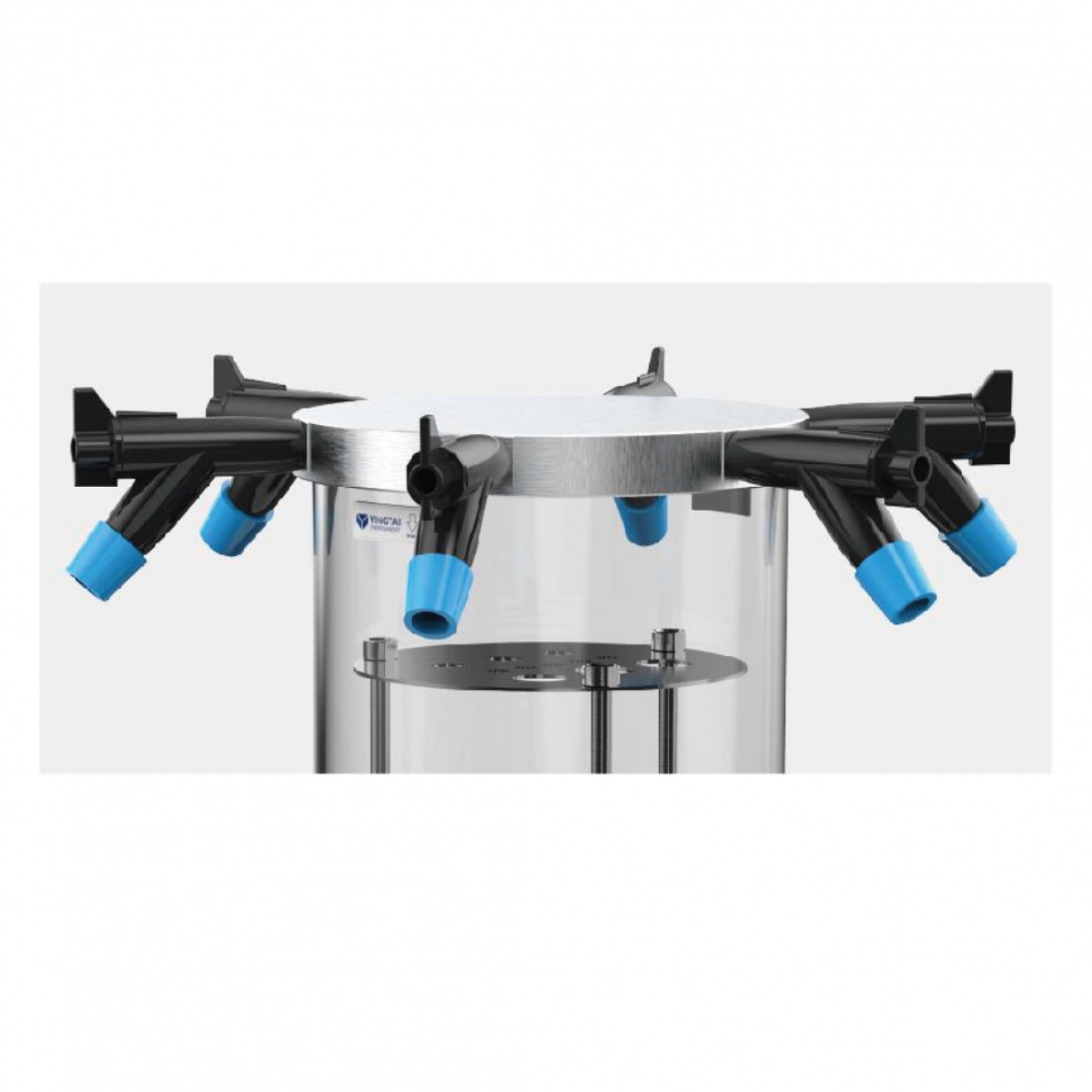

| Freeze Dry Room | Bell type / Multi-manifold type / T-frame type |
| Power | 0.6 kW |
| External Valve | 6 pcs. |
| Oil Filter | Standard |
| Electrical data | |
| Nominal voltage/ | 220 V AC |
| nominal frequency | / 50 Hz |
| Power consumption | 1100 W |
| Dimension | |
| Exterior G x D x Y (mm) | 420 x 545 x 455 |
| Package Size G x D x Y (mm) | 1020 x 720 x 700 |
| Net Weight | 50 kg |
| Package Weight | 65 kg |
